Odum ESL Geoms — ggplot2 layers for H.T. Odum's Energy Systems Language

Source: R/geom_odum.R
geom_odum.Rd

A family of ten ggplot2 Geoms that draw the canonical Energese symbols — H.T. Odum's Energy Systems Language. Each Geom places one symbol per row of data at aes(x, y) with size controlled by width + height (or radius), and takes the standard fill, colour, alpha, and linewidth aesthetics.

Usage

GeomOdumSource

geom_odum_source(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  n = 60,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumFlow

geom_odum_flow(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumStorage

geom_odum_storage(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  n = 20,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumConsumer

geom_odum_consumer(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumInteraction

geom_odum_interaction(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumProducer

geom_odum_producer(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  n = 20,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumSwitch

geom_odum_switch(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumSelfLimiter

geom_odum_self_limiter(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  n = 30,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumHeatSink

geom_odum_heat_sink(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumTransaction

geom_odum_transaction(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

GeomOdumMoney

geom_odum_money(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  n = 60,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping, data, stat, position, na.rm, show.legend, inherit.aes, ...

Standard ggplot2 layer arguments.

n

Vertex count for curved symbols.

Value

A ggplot2 layer.

Details

Geometry follows the canonical reference chart on Wikipedia (https://commons.wikimedia.org/wiki/File:Energese.jpg).

Symbols

  • geom_odum_source() — filled circle (renewable / external input)

  • geom_odum_flow() — bare right-pointing arrow (generic energy flow)

  • geom_odum_storage() — Bertalanffy module (energy storage)

  • geom_odum_consumer() — hexagon (consumer / consumption)

  • geom_odum_interaction() — chevron (multiplicative junction)

  • geom_odum_producer() — bullet (autocatalytic producer)

  • geom_odum_switch() — bowtie (on/off logic gate)

  • geom_odum_self_limiter() — semi-circle (saturating unit)

  • geom_odum_heat_sink() — down-arrow + ground line (dispersed heat)

  • geom_odum_transaction() — elongated diamond (money transaction)

Aesthetics

Required: x, y. Optional (with sensible defaults): width, height for polygonal symbols; radius for source, money; fill, colour, alpha, linewidth.

Examples

library(ggplot2)

# One of each of the ten symbols in a single plot
one <- data.frame(x = 0, y = 0)

ggplot(one, aes(x, y)) + geom_odum_source() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_flow() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_storage() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_consumer() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_interaction() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_producer() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_switch() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_self_limiter() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_heat_sink() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.
#> Warning: Unknown or uninitialised column: `linetype`.
#> Warning: Unknown or uninitialised column: `linetype`.


ggplot(one, aes(x, y)) + geom_odum_transaction() +
  coord_fixed() + theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.

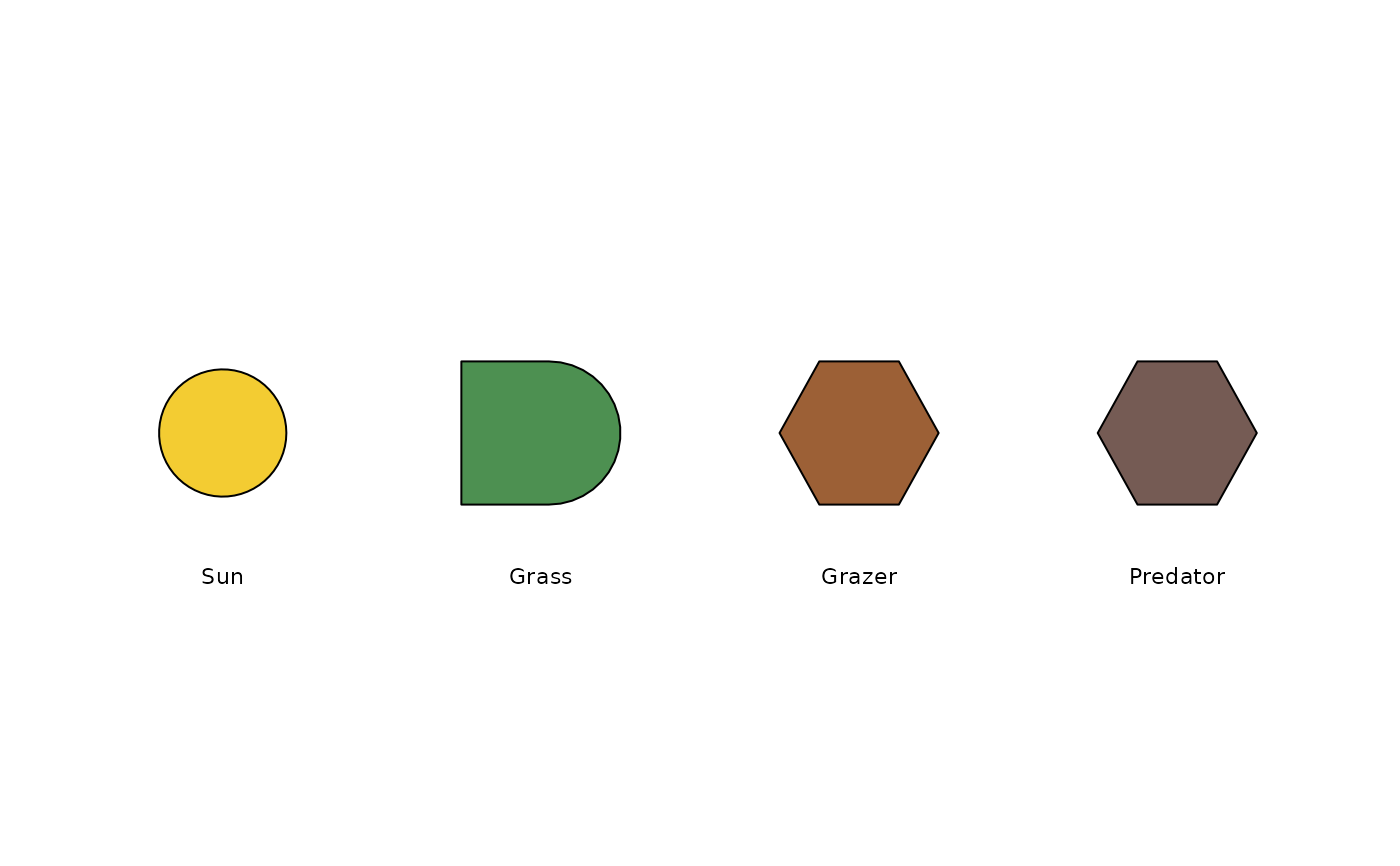

# Vectorised: many symbols on one canvas driven by data.
d <- data.frame(x = c(1, 3, 5, 7),
                y = 0,
                role = c("Sun", "Grass", "Grazer", "Predator"))
ggplot(d, aes(x, y)) +
  geom_odum_source  (data = d[1, ], radius = 0.4, fill = "#F1C40F") +
  geom_odum_producer(data = d[2, ], width = 1.0, height = 0.9,
                      fill = "#2E7D32") +
  geom_odum_consumer(data = d[3, ], width = 1.0, height = 0.9,
                      fill = "#8B4513") +
  geom_odum_consumer(data = d[4, ], width = 1.0, height = 0.9,
                      fill = "#5D4037") +
  geom_text(aes(y = y - 0.9, label = role), size = 3) +
  coord_fixed(xlim = c(0, 8), ylim = c(-1.5, 1.5)) +
  theme_void()
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.
#> Warning: Unknown or uninitialised column: `subgroup`.
#> Warning: Unknown or uninitialised column: `linetype`.
